Scale reconstruction

U-869 Model

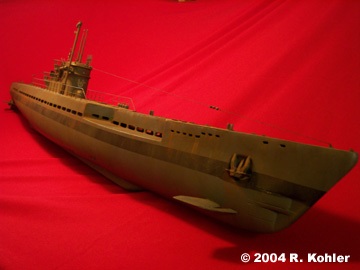

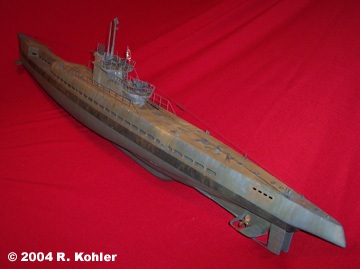

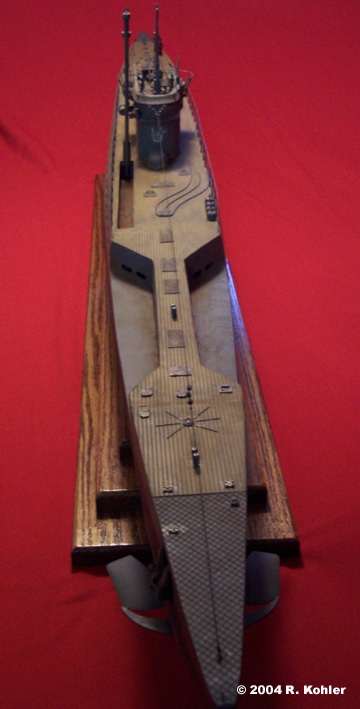

A five-foot scratch-built model of U-869, commissioned by Richard Kohler and constructed from original Type IXC-40 plans and historical photographs.

Commissioned in 1997 Built by Peter J. Papa Type IXC-40

The model

Built from plans, photographs, and the details of a late-war U-boat.

Richard Kohler commissioned the model in 1997 from master modeler Peter J. Papa.

Using actual Type IXC-40 construction plans, historical photographs of U-869, and photographs of her sister boats, Papa spent more than a year constructing the model from a wide variety of materials.

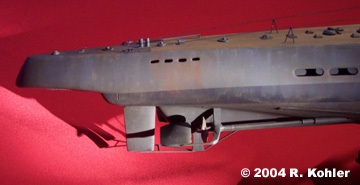

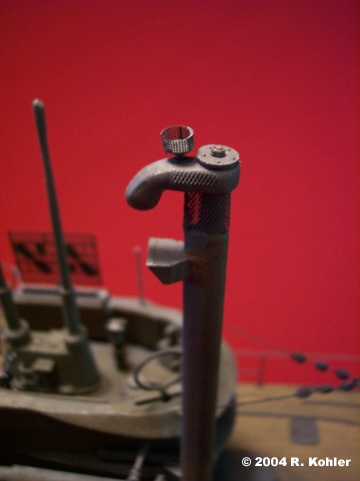

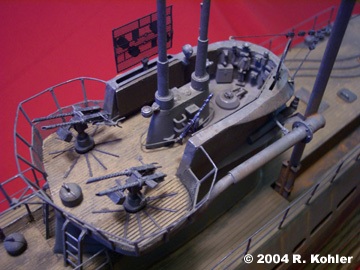

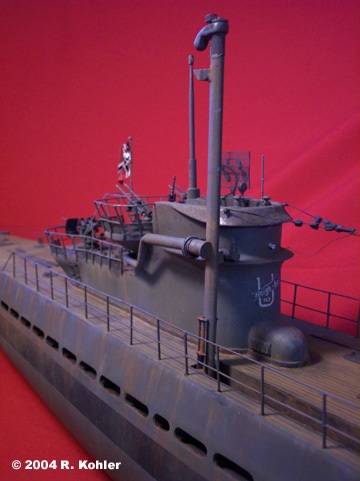

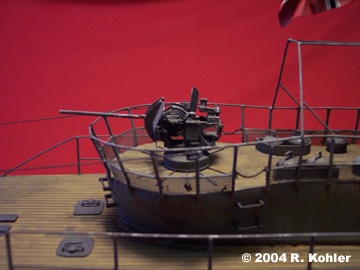

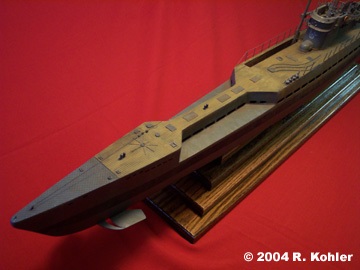

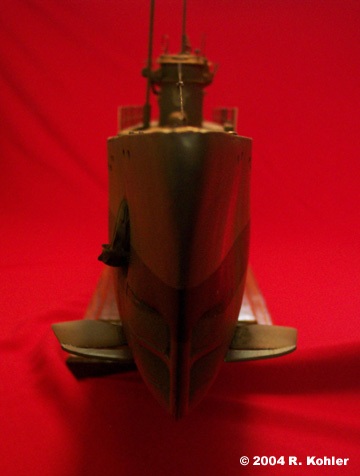

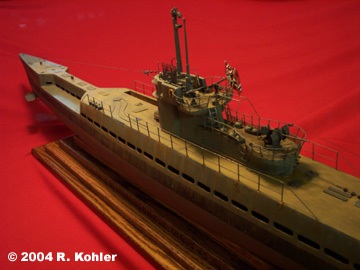

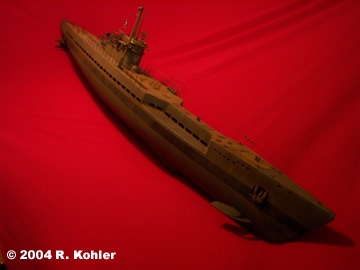

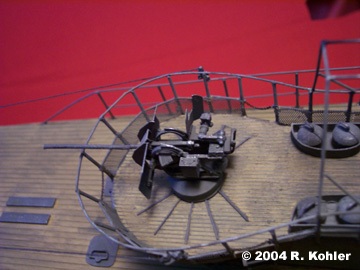

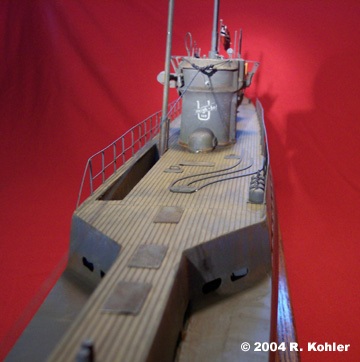

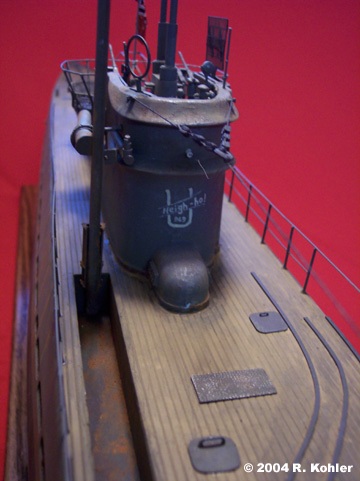

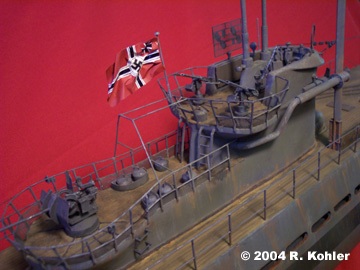

At five feet long, the model was built to reproduce U-869 in both scale and equipment, including her weathered paint scheme and late-war modifications such as the snorkel, quick-diving hull, dinghy canisters, and radar equipment.
